Product Description:
Industrial prefabricated light frame modular storage building is a professional logistics-oriented steel structure solution tailor-made for modern logistics distribution centers, transit storage bases and industrial cargo turnover warehouses. Different from general factory workshops and ordinary storage buildings, this product is fully optimized around logistics operation characteristics such as frequent cargo access, fast turnover, standardized cargo sorting and large-area centralized storage. Adopting industrial light steel frame modular prefabricated technology, all structural frames, enclosure systems and logistics matching structures are pre-engineered and mass-produced in the factory. It abandons redundant industrial configurations that are not required for logistics scenarios, and focuses on improving space fluency, cargo handling efficiency and rapid deployment capability. With standardized modular splicing, open large-space layout and logistics-friendly structural design, this prefab warehouse perfectly meets the needs of modern third-party logistics enterprises, industrial park supporting logistics centers and regional cargo transit stations for fast construction, low operating cost and scalable storage space.

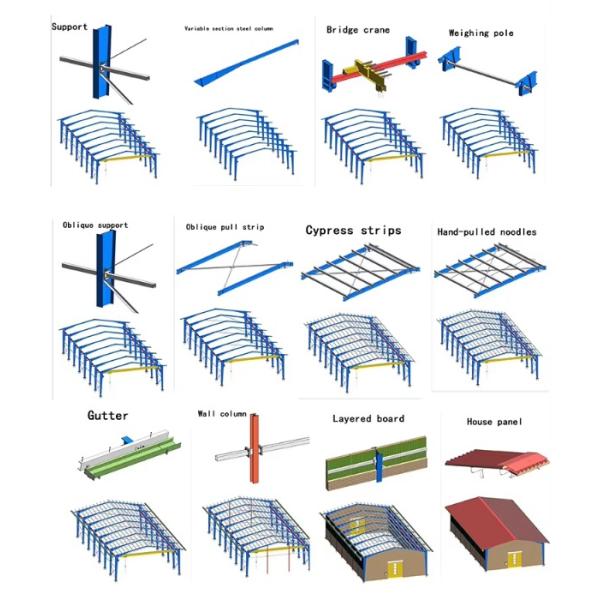

Features:
|
Main Structure
|
Column
|
Q355/Q235 H- steel , Box column is also available
|
|
Rafter, Beam
|
Q355/Q235 H- steel
|
|
Surface processing options
|
1. Epoxy zinc-rich primer + epoxy mica intermediate paint (120μm thickness)
|
|
2. Hot dip galvanization
|
|
Sub Structure
|
Purlin
|
Q355B, C/Z steel section, galvanization 275g/m2
|
|
Angle brace
|
Q235B, L- steel
|
|
Cross bracing
|
Q235B round bar, L-steel
|
|
Tie bar
|
Q235B, round pipe
|
|
Batter brace
|
Q235B, round bar
|
|
Roof System
|
Roof panel options
|
1. Insulated sandwich panel, PU, rock wool, glass fiber, EPS. Two sides is steel sheet. Thickness of roof panel 50mm/75mm/100mm,
thickness of steel sheet 0.4mm/0.5mm/0.6mm
|
|
2. Steel plate, thickness 0.4mm/0.5mm/mm
|
|
Gutter options
|
1. Galvanized steel gutter, thickness 2.0mm/2.5mm, 3.0mm
|
|
2. Painted, Pre-finished steel gutter, thickness 0.4mm/0.5mm/0.6mm
|
|
Down spout
|
PVC pipe
|
|
Steel flashing and cover
|
Steel sheet for roof ridge cap, gable wall end cover and corner cover
|
|
Options
|
Roof skylight 1.8mm PVC sheet and stainless steel ventilator
|
|
Wall System
|
Wall panel options
|
1. Insulated sandwich panel, PU, rock wool, glass fiber, EPS. Two sides is steel sheet. Thickness of roof panel 50mm/75mm/100mm,
thickness of steel sheet 0.4mm/0.5mm/0.6mm
|
|
2. Steel plate, thickness 0.4mm/0.5mm/mm
|
|
3. Brick wall (provided by client)
|
|
Door
|
1. Roller door for truck, size customized
|
|
2. Sliding door for truck, size customized
|
|
3. Access door, steel door, glass door etc.
|
|
Window
|
PVC or Aluminum frame, Fixed, swing, sliding, louver etc, size customized
|
|
Steel flashing and cover
|
Steel sheet end cover and corner cover
|
|
Accessories and fasteners
|
|
Anchor bolts, chemical bolts, high strength bolts, ordinary bolts, self-drilling screws, rivet etc.
|
|
Other Options
|
|
Crane 5T, 6T, 10T, 16T, 30T etc.
|
Technical Parameters:
Applications:
-
-
Comprehensive Logistics Distribution Center: Regional logistics transit warehouses, urban distribution sorting centers, cross-border cargo transfer stations, centralized storage and distribution bases for e-commerce goods, supporting batch cargo sorting, temporary storage and rapid delivery.
-
Industrial Park Supporting Storage: Specialized supporting warehouses for industrial parks, factory finished goods transit warehouses, industrial material centralized turnover depots, serving centralized storage and unified distribution of park enterprise goods.
-
Commercial Batch Storage Warehouse: Large-scale commodity centralized storage, retail chain goods transfer warehouses, seasonal commodity reserve warehouses, suitable for standardized pallet storage and batch cargo management.
-
Express & Freight Temporary Station: Express sorting temporary warehouses, freight forwarding transit buildings, logistics temporary operation venues, adapting to short-term high-frequency cargo operation and rapid site switching.
-
Regional Reserve Storage Facilities: Daily commodity reserve warehouses, industrial auxiliary material storage bases, municipal supporting logistics storage buildings, meeting stable and long-term standardized storage management needs.
Customization:
Company & Certification
Support and Services:
Our Modular Steel Structures are designed with precision engineering and high-quality materials to ensure durability, flexibility, and ease of assembly. For technical support, our team of experts is available to assist you with installation guidelines, customization options, and maintenance best practices to maximize the lifespan and performance of your modular steel structure.
We offer comprehensive services including structural analysis, design consultation, and on-site support to help you achieve optimal results. Whether you require assistance with load calculations, component compatibility, or integration with existing frameworks, our technical support specialists provide timely and effective solutions tailored to your project needs.
Additionally, we provide detailed documentation, including assembly manuals, safety instructions, and compliance certifications to facilitate smooth project execution. Our commitment to quality and customer satisfaction ensures that you receive reliable and professional support throughout the lifecycle of your modular steel structure.
For maintenance services, we recommend regular inspections and preventative care to identify and address any potential issues early. Our service team can also perform repairs, upgrades, and modifications to adapt your structure to changing requirements or environmental conditions.
Trust our Modular Steel Structures technical support and services to deliver expert guidance and comprehensive assistance, ensuring your investment is protected and your project is a success.
Packing and Shipping:
